5j20110/5j1413/5j1416/5j1580 Nickel Iron Alloy Strip 0.3*6mm Size Customized Bimetal Strip

Name: 5j201105j14135j14165j1580 Nickel Iron Alloy Strip 036mm Size Customized Bimetal Strip
Brand: HUONA
Price: 30.00 USD

Quality 5j20110/5j1413/5j1416/5j1580 Nickel Iron Alloy Strip 0.3*6mm Size Customized Bimetal Strip wholesale

Brand Name : HUONA

Model Number : STRIP

Certification : ISO9001 SGS

Place of Origin : CHINA

MOQ : 1KG

Price : US$30.00-60.00

Payment Terms : T/T

Supply Ability : 1000kg Per Week

Delivery Time : WEEK

Packaging Details : 1000kg Per Week

Contact Now

Basic Info.

Purity

Nickel36

Alloy

Type

Bimetal Strip

Powder

Not Powder

Product Name

Bimetal Strip

Grade

108sp/5j20110

Passive Component

Feni36

Intermediate Layer

Fe-Cu

Active Component

Mncu18ni10

Thickness

0.1 to 2.0mm

Width

1.0 to 200mm

Temper

Hard

Resistivity

1.10

Density

7.6g/cm3

Transport Package

Carton or Wooden Case

Specification

ASTM-B388

Trademark

HUONA

Origin

Xuzhou, Jiangsu, China

HS Code

7505120000

Production Capacity

1000kg Per Week

Product Description

DLX bimetallic strip or bimetal strip is a strip that consists of two strips of different metals which expand at different rates as they are heated. They are used to convert a temperature change into mechanical displacement. The different expansions force the flat strip to bend one way if heated, and in the opposite direction if cooled below its initial temperature. The metal with the higher coefficient of thermal expansion is on the outer side of the curve when the strip is heated and on the inner side when cooled.

Code	Active Component	Passive Component	Sensitivity	Resistance	Suit Temperature
5J20110(108SP)	Mn72Ni10Cu18	FeNi36	High	High	Middle
5J14140	Mn72Ni10Cu18	FeNi36	Middle	High	Middle
5J5120	Mn72Ni10Cu18	Ni45Cr6	Middle	High	Middle
5J1480	Ni22Cr3	Ni36	M	M	M
5J1380	Ni19Mn7	Ni34	M	M	L
5J1580	Ni20Mn6	Ni36	M	M	M
5J1017	Ni	Ni36	M	L	M
5J1413	Cu62Zn38	Ni36	M	L	H
5J1416	Cu62Zn38	Ni36	M	L	H
5J1070	Ni19Cr11	Ni42	M		H

Physical Properties

Density	7.6g/cm3
Resistivity at 20 ºC	1.10±4%
Thermal Conductivity	6.0λ/ W
Elastic Modulus	110-143 E/GPA
Bending K / 10^-6 ºC^-1	20.8
Temperature Bending rate	34%-42%
Allowable Temp	-70~200ºC
Liner Temperature	-20~150ºC

Product Tags:

Customized Nickel Iron Alloy Strip

Customized alloy steel strip

5j1416 Nickel Iron Alloy Strip

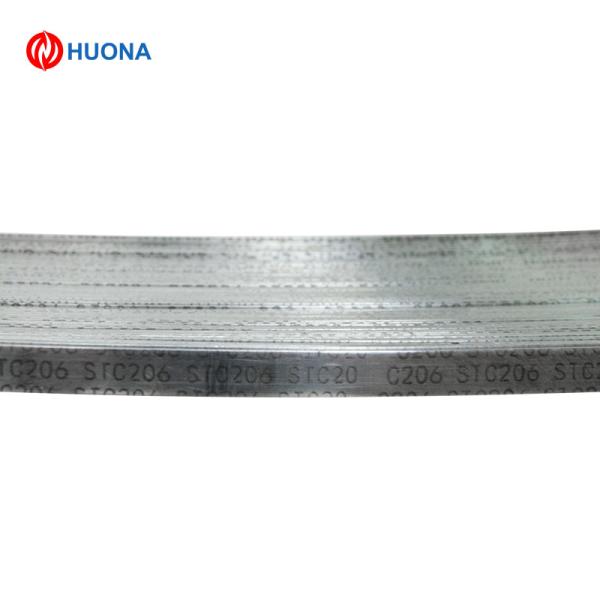

5j20110/5j1413/5j1416/5j1580 Nickel Iron Alloy Strip 0.3*6mm Size Customized Bimetal Strip Images
