0.5-50mm Bright Nichrome Resistance Strip Nicr 80/20 /Nch (R) W1

Name: 0550mm Bright Nichrome Resistance Strip Nicr 8020 Nch R W1
Brand: HUONA
Price: 22 USD

Brand Name : HUONA

Model Number : Ni80Cr20

Certification : ISO9001, RoHS

Place of Origin : China

MOQ : 1KG

Price : $22/KG-$28/ KG

Payment Terms : T/T

Supply Ability : 100 Ton/Month

Delivery Time : Around a week

Packaging Details : Spool, Carton, Wooden Case

Chemical Composition : Nickel 80%, Chrome 20%

Condition : Bright/Acid white/Oxidied Color

Diameter : 1.5mm-8mm packing in coil, 8~60mm in rod

Nichrome Strip : Width 450mm~1mm, thickness 0.001m~7mm

Grade : Ni80Cr20

Advantage : Nichrome's metallurgical structure confers them a very good plasticity when cold.

Characteristics : Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

Usage : Resistance heating elements;Material in metallurgy;Household appliances; Mechanical manufacturing and other industries.

Contact Now

Basic Info.

Model NO.

Nicr8020

Purity

80%

Alloy

Type

Nickel Strip

Powder

Not Powder

Chemical Composition

Ni 76%

Product Name

Nichrome Resistance Wire

Characteristics

High Resistivity, Good Oxidation Resistance

Melting Point

1400

Density

8.4 g/cm3

Electrical Resistivity

1.09 Ohm mm2/M

Elongation

≥20%

Hardness

180 Hv

Max Working Temperature

1200 ℃

Range of Application

Resistor, Heater

Transport Package

Wooden Case

Specification

8.0mm

Trademark

HUONA

Origin

Shanghai

HS Code

7506200000

Production Capacity

100 Ton/Month

Product Description

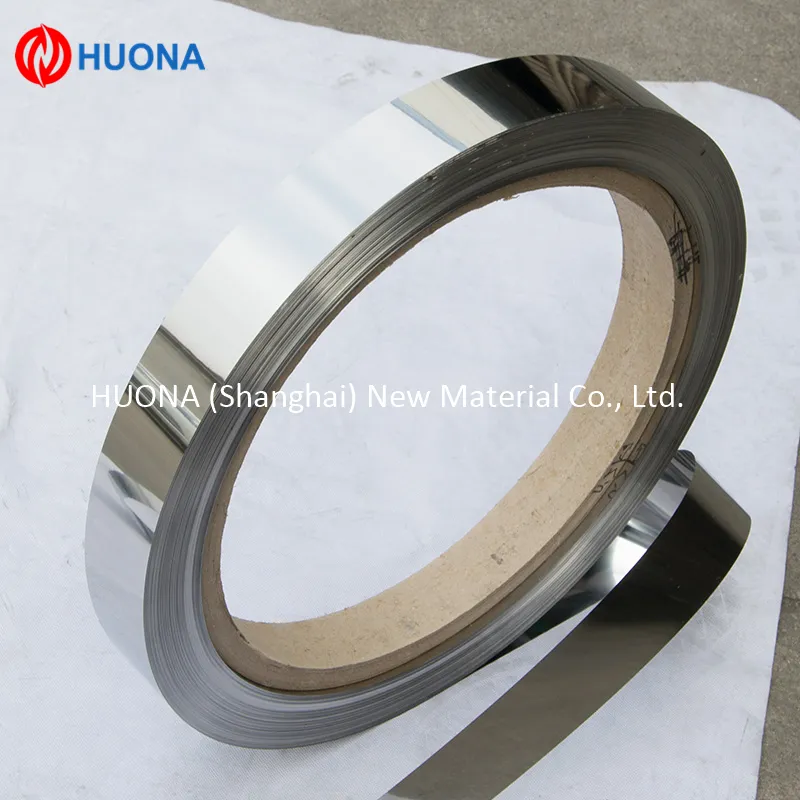

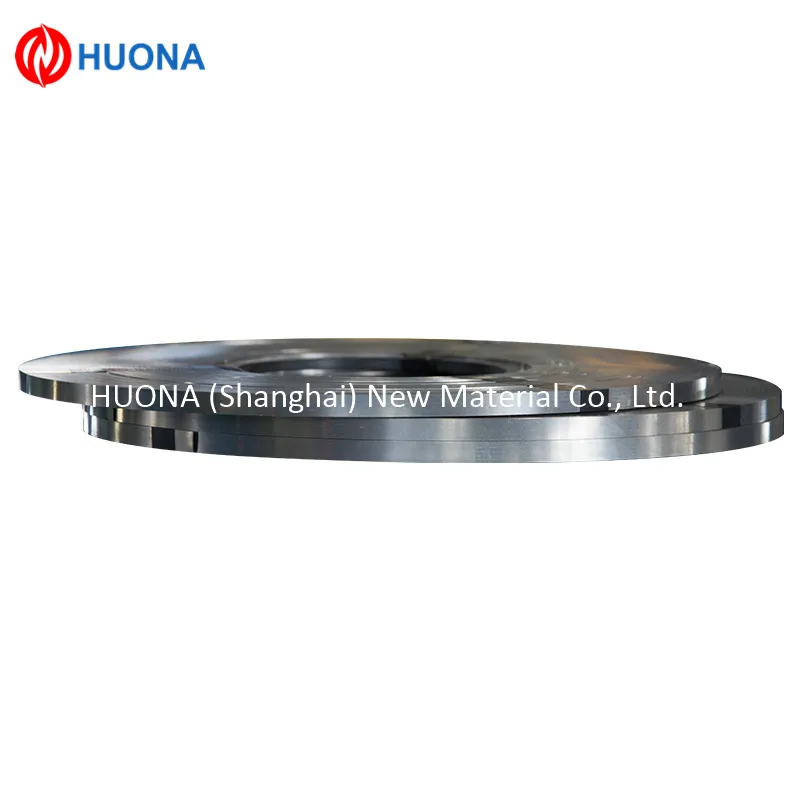

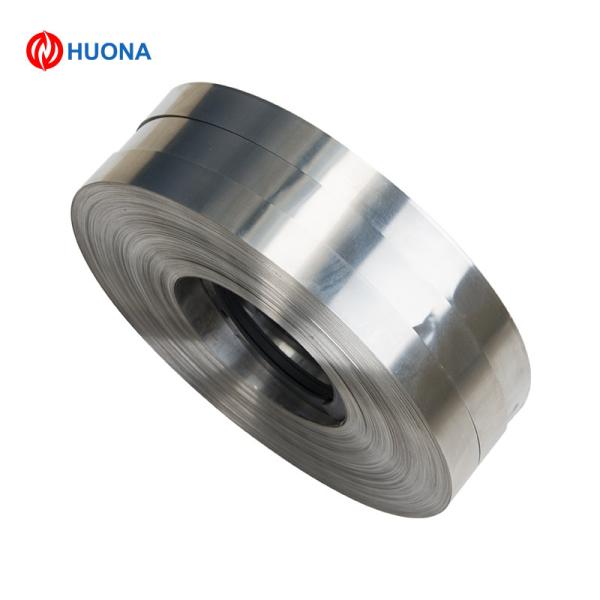

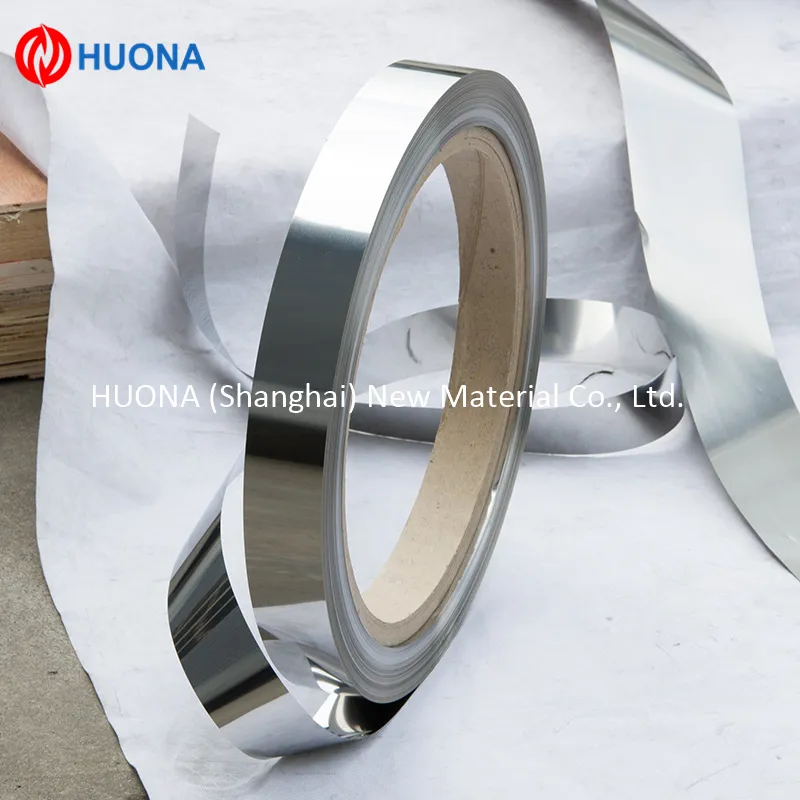

0.5-50mm Bright Nichrome Resistance Strip NiCr 80/20 /Nch (R) W1

Description

Model NO.	NiCr8020	Density	8.4 g/cm3
Material Shape	Strip	Melting Point	1400 ℃
Range of Application	Resistor, Heater	OEM	YES
Certification	ISO9001, RoHS	Stock	In stock
Brand	HUONA	Tensile Strength	750 N/mm²
Usage	Resistance materials	Electrical Resistivity	1.09
Elongation	>20%	Trademark	HUONA
Hardness	180 HV	Transport Package	Spool, Carton, Wooden Case
Max Working Temperature	1200 ℃	Specification	0.8mm
HS Code	7506200000	Origin	China

Chemical Composition and Propertes:
Propertes/Grade		NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition(%)	Ni	Bal.	Bal.	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤ 1.0	≤ 1.0	Bal.	Bal.	Bal.
Max Working Temperature(ºC)		1200	1250	1150	1100	1100
Resistivity at 20ºC(μ Ω · m)		1.09	1.18	1.12	1.04	1.04
Density(g/cm3)		8.4	8.1	8.2	7.9	7.9
Thermal Conductivity(KJ/m· h· ºC)		60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion(α × 10-6/ºC)		18	17	17	19	19
Melting Point(ºC)		1400	1380	1390	1390	1390
Elongation(%)		> 20	> 20	> 20	> 20	> 20
Micrographic Structure		austenite	austenite	austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic

Chemical Composition	Nickel 80%, Chrome 20%
Condition	Bright/Acid white/Oxidied Color
Diameter	0.018mm~1.6mm in spool, 1.5mm-8mm packing in coil, 8~60mm in rod
Nichrome Strip	Width 450mm~1mm, thickness 0.001m~7mm
Diameter	1.5mm-8mm packing in coil, 8~60mm in rod
Grade	Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20 Ni80, Ni70,Ni60, Ni40,
Advantage	Nichrome's metallurgical structure confers them a very good plasticity when cold.
Characteristics	Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Usage	Resistance heating elements;Material in metallurgy;Household appliances; Mechanical manufacturing and other industries.


0.5-50mm Bright Nichrome Resistance Strip Nicr 80/20 /Nch (R) W1

FAQ
1. How long i can get the feedback after we sent the enquiry?
A: We will reply you within 12 hours in working day.

2. How can I get some samples?
A: We are pleased to offer you sample, the delivery time is about 4-7 days.

3. Are you a factory?
A: Yes. We are. We have specialized in this field over 10 Year.

4. What is the delivery time?
A:15 days normally, detail delivery date should be decided according to production season and order quantity.
