Z Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance Wire

Huona (Shanghai) New Material Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Z Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance Wire

Brand Name : HUONA

Model Number : 0cr21al6nb

Certification : ISO9001, RoHS

Place of Origin : China

MOQ : 1KG

Price : Need to negotiate

Payment Terms : T/T

Supply Ability : 300 Tons/Month

Delivery Time : Around a week

Packaging Details : Spool, Carton, Wooden Case

Product name : Z-Shaped Furnace Annealed Strip

Composition : 0cr21al6nb

Product shape : Z-shaped

Product type : Strip

Product usage : Heating Resistance element for urnace

Sample : Support

Contact Now

Basic Info.

Model NO.
Hn A1
Carbon Content
-
PCD
-
ET
-
Hole
-
Chemical Composition
0cr21al6nb
Product Name
Heating Resistance Strip
Characteristics
High Resistivity, Good Oxidation Resistance
The Highest Use Temperature
1400℃
Density
7.1g/cm3
Resisivity
1.45
Elongation
>10%
Sample
Support
Transport Package
Wooden Cases or Cartons
Specification
Can customize
Trademark
HUONA
Origin
China
HS Code
7408220000
Production Capacity
300 Tons/Month

Product Description

Z-shaped Furnace annealed wire Resistance / 0cr21al6nb / Hn A1/Heating resistance wire

Kan-thal A-1 large-sized cold-drawn wire products can be used for high-temperature resistance furnace. Practice has proved that: the product process is stable, integrated performance is good. Has good high temperature oxidation resistance and longer service life; excellent winding properties at room temperature processing, ease of processing molding; little rebound resilience and so on. Processing performance is very good; operating temperature can reach 1400 ºC.
Main specifications and uses:

Conventional Product specifications: 0.5 ~ 10 mm

Uses: mainly used in powder metallurgy furnace, diffusion furnace, radiant tube heater and all kinds of high-temperature furnace heating body.

MAIN CHEMICAL ELEMENTS AND PROPERTIES
Properties Grade
Cr Al Re Fe
25.0 6.0 Suitable Balance
Max Continuous Service Temperature(ºC) Diameter 1.0-3.0 Diameter large than 3.0,
1225-1350ºC 1400ºC
Resisivity 20ºC (ohm*mm2/m) 1.45
Density(g/cm3) 7.1
Approximate Melting Point( ºC) 1500
Elongation (%) 16-33
Repeatedly Bend Frequency(F/R) 20ºC 7-12
Continuous Service Time under 1350 ºC More than 60 hours
Micrographic Structure Ferrite
The relationship between the maximum operating temperature and the furnace atmosphere
Furnace Dry Air Humid Air hydrogen-argon Argon Decomposition
atmosphere gas ammonia gas
Temp(ºC) 1400 1200 1400 950 1200

User Manual
  1. Rated Voltage: 220V/380V
  1. The installation process to avoid knocking, to avoid the damp, hand-held stove wire, they should wear gloves. Wire should be installed after the furnace has remained flat, and prevent surface scratches, dirt, corrosion, or improper installation, by affecting the life of
  1. In the rated voltage to use. In strong reducing atmosphere, acid atmosphere, an atmosphere of high humidity will affect the use of life;
  1. Temperature before use should be in dry non-corrosive atmosphere, about 1000 ºC spend a few hours, so that furnace wire protective film formed on the surface after normal use, so that can guarantee the normal life of furnace wire;
  1. Furnace installation should ensure that the insulated wire good power to avoid touching furnace after the wire, guard against electric shock or burns.

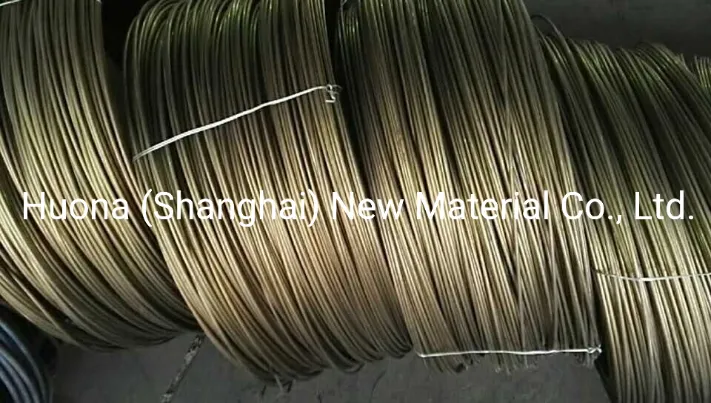

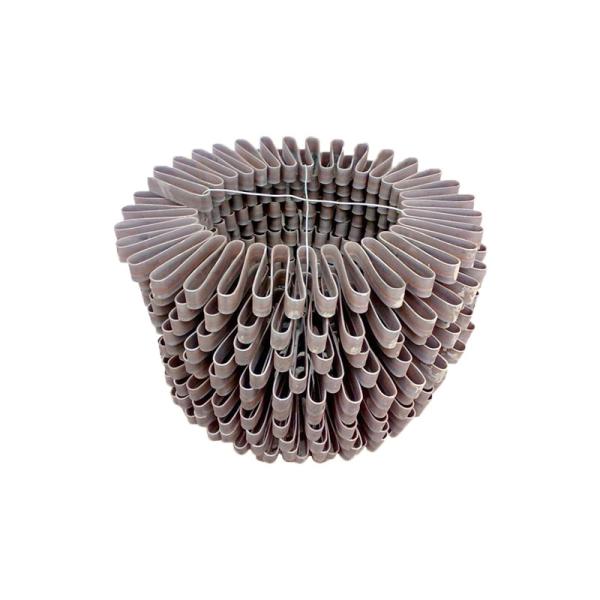

Z Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance Wire
Z Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance WireZ Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance WireZ Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance WireZ Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance WireZ Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance WireZ Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance WireZ Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance Wire
